Technological line for producing
of liquod organic fertilizers
and plant growth stimulators based
on humic and fulvic acids
AGRONAMA.COM

∞
 ∞ Possibility to obtain EU and US organic certification
 ∞ Constant guaranteed supply of certified raw materials
 ∞
 ∞ Continuous support by Agronama specialists
 ∞ Ability to use TM Fertil Verde.
 ∞
 ∞

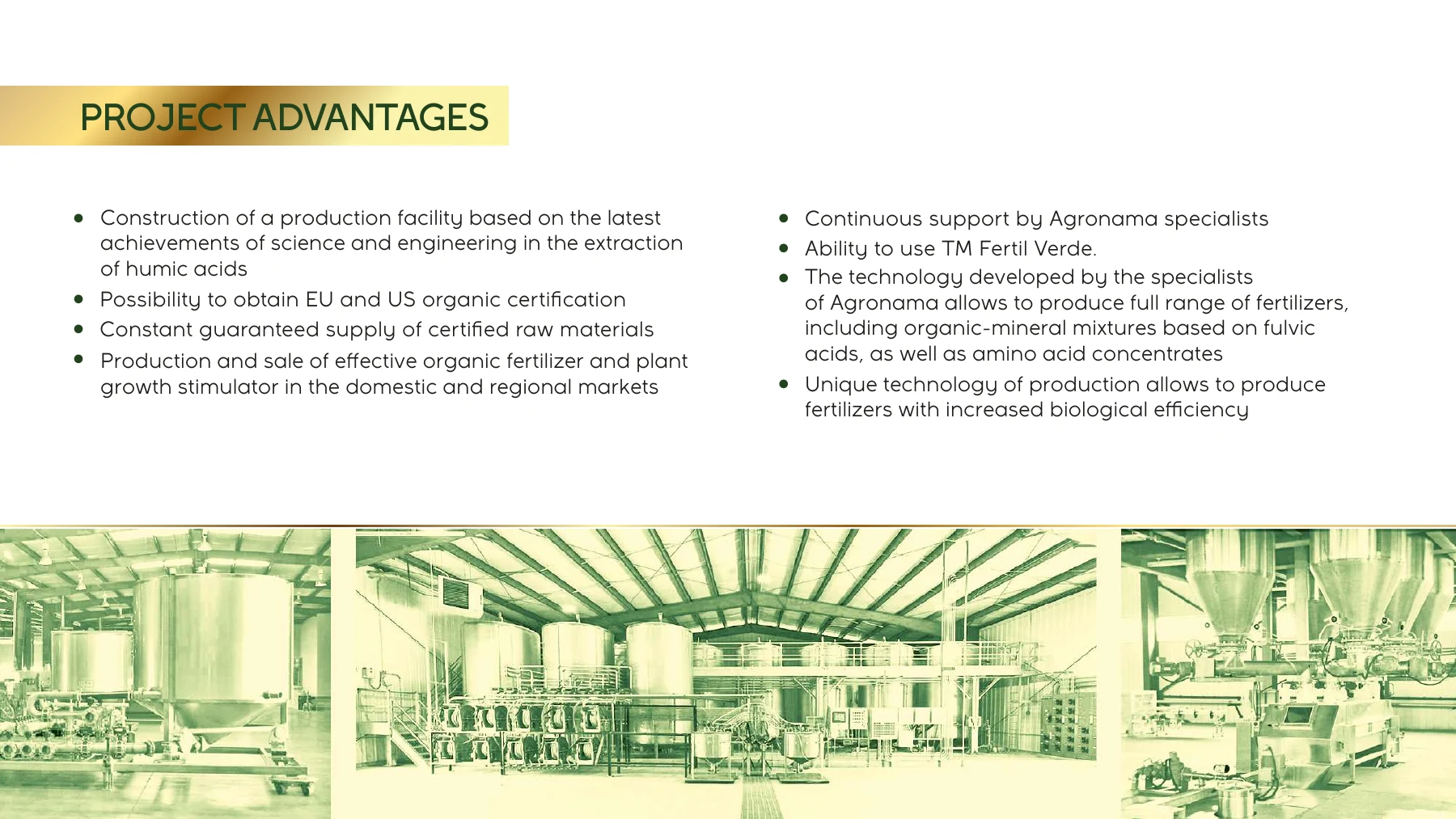

PROJECT ADVANTAGES
Construction of a production facility based on the latest
achievements of science and engineering in the extraction
of humic acids
Production and sale of effective organic fertilizer and plant
growth stimulator in the domestic and regional markets
The technology developed by the specialists
of Agronama allows to produce full range of fertilizers,
including organic-mineral mixtures based on fulvic
acids, as well as amino acid concentrates
Unique technology of production allows to produce
fertilizers with increased biological efficiency

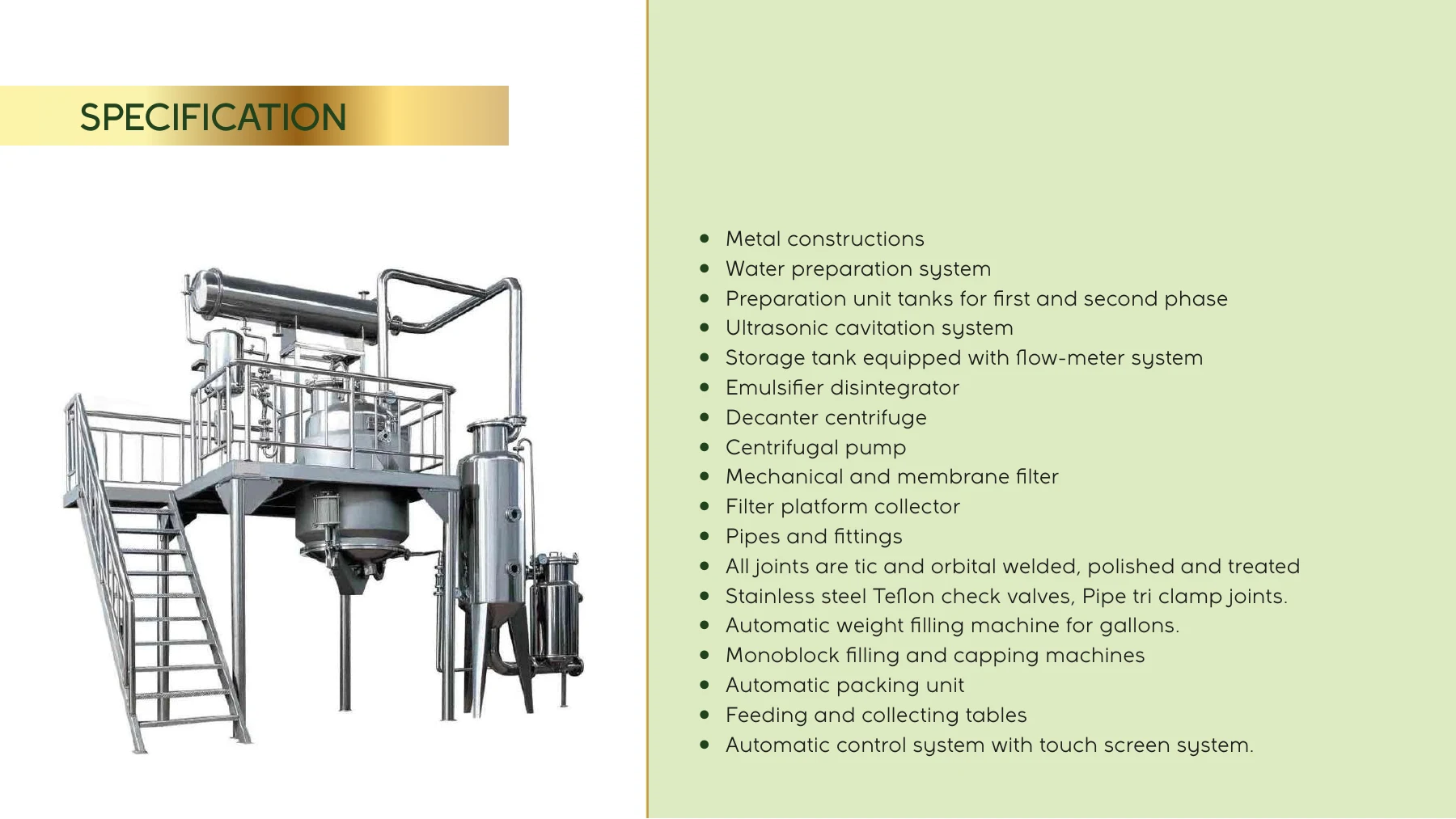

∞ Metal constructions
 ∞ Water preparation system
 ∞ Preparation unit tanks for first and second phase
 ∞ Ultrasonic cavitation system
 ∞ Storage tank equipped with flow-meter system
 ∞ Emulsifier disintegrator
 ∞ Decanter centrifuge
 ∞ Centrifugal pump
 ∞ Mechanical and membrane filter
 ∞ Filter platform collector
 ∞ Pipes and fittings
 ∞ All joints are tic and orbital welded, polished and treated
 ∞ Stainless steel Teflon check valves, Pipe tri clamp joints.
 ∞ Automatic weight filling machine for gallons.
 ∞ Monoblock filling and capping machines
 ∞ Automatic packing unit
 ∞ Feeding an d collecting tables
 ∞ Automatic control system with touch screen system.

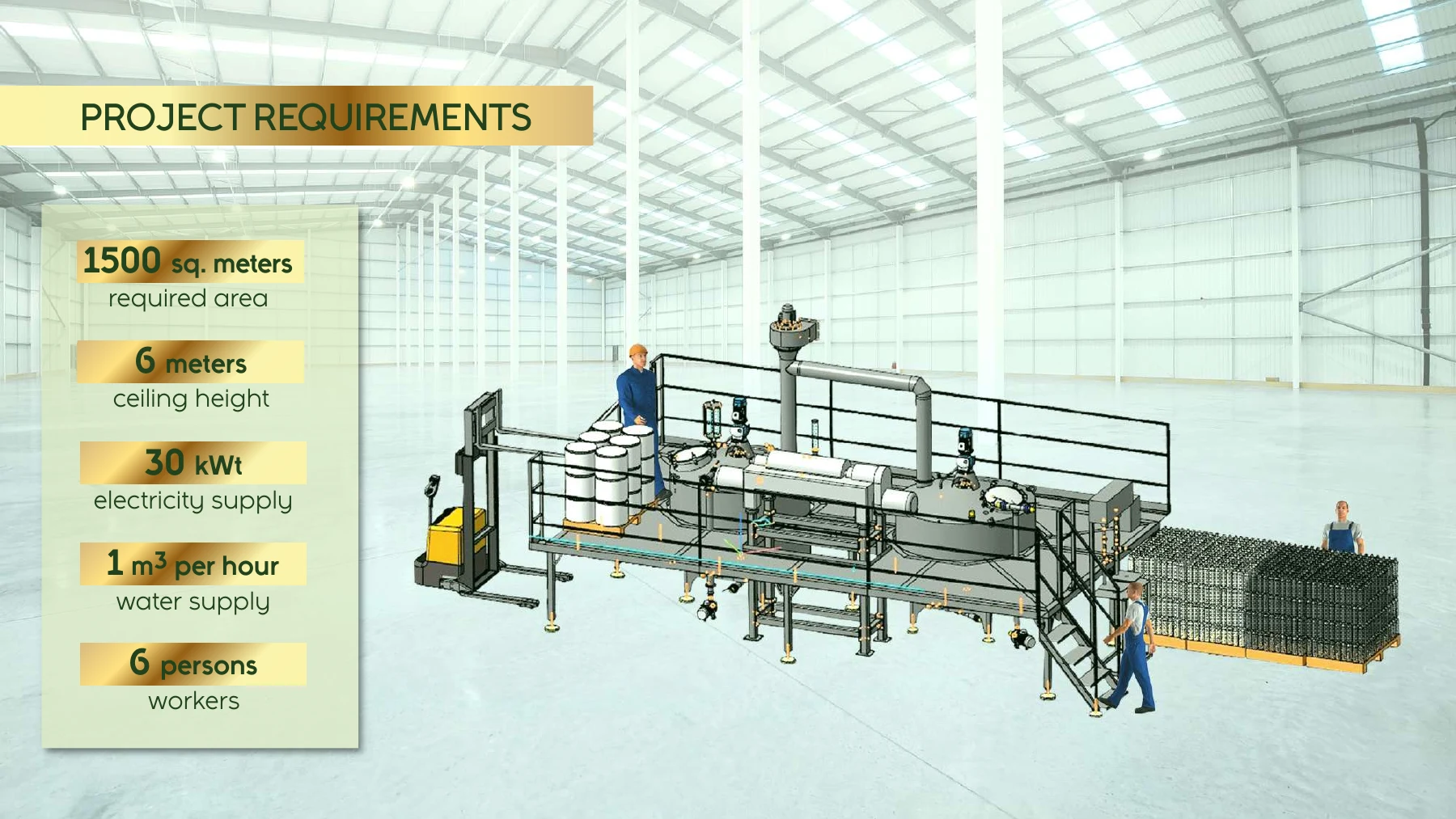

SPECIFICATION

1500 sq. meters
required area
6 meters
ceiling height
6 persons
workers
30 kWt
electricity supply
1 m3 per hour
water supply
PROJECT REQUIREMENTS

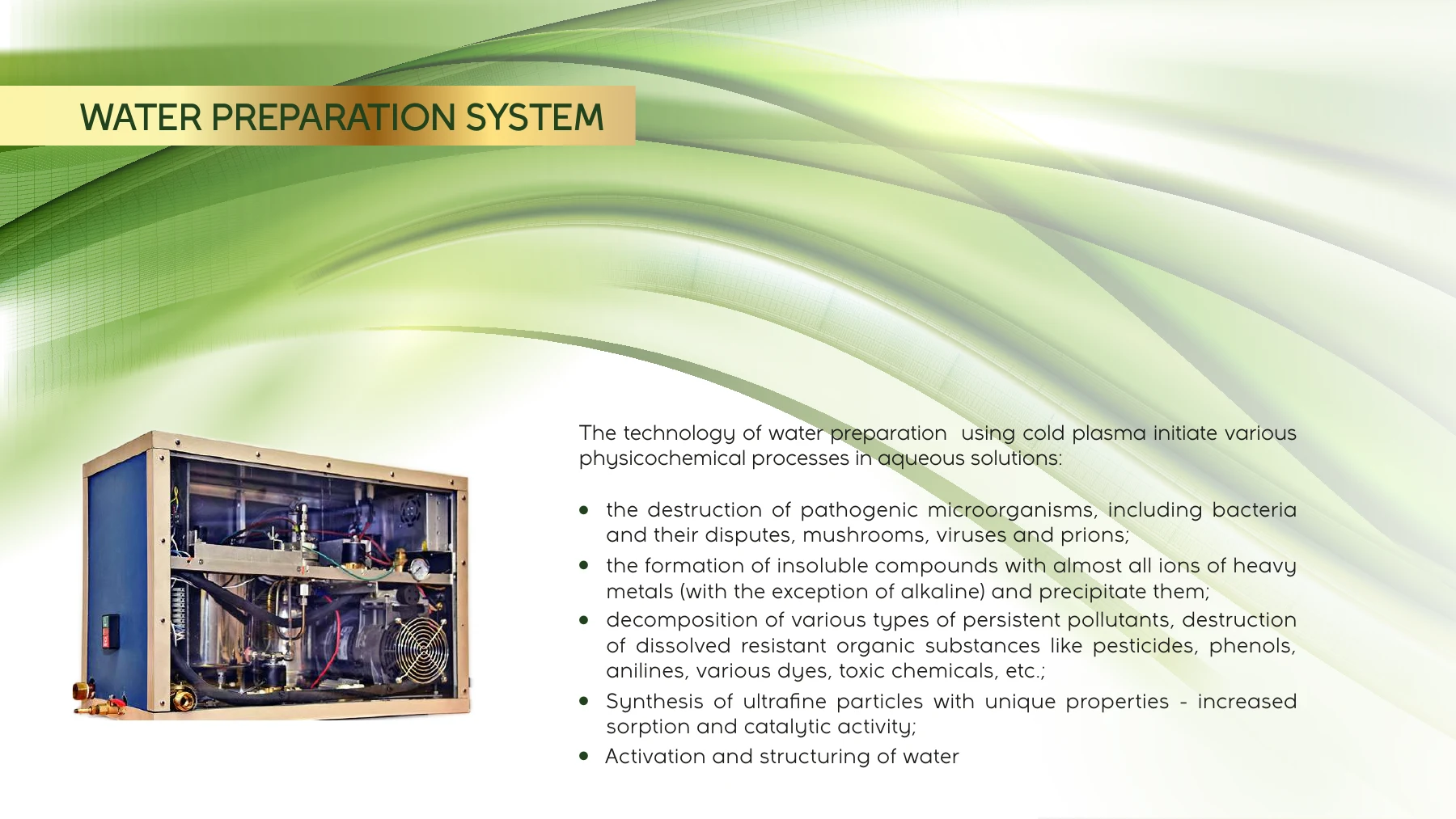

WATER PREPARATION SYSTEM
∞
∞
∞
∞
∞ Activation and structuring of water
The technology of water preparation  using cold plasma initiate various
physicochemical processes in aqueous solutions:
the destruction of pathogenic microorganisms, including bacteria
and their disputes, mushrooms, viruses and prions;
the formation of insoluble compounds with almost all ions of heavy
metals (with the exception of alkaline) and precipitate them;
Synthesis of ultrafine particles with unique properties - increased
sorption and catalytic activity;
decompositio
n of various types of persistent pollutants, destruction
of dissolved resistant organic substances like pesticides, phenols,
anilines, various dyes, toxic chemicals, etc.;

∞ The plasmachemical production of NO and NOx.
 ∞ The plasmachemical production of ozone.
 ∞ The plasmachemical production of reactive species
including (but not limited to) OH, HO2, and O(3P).

 ∞ Increase rooting speed
 ∞ Reduce water consumption
 ∞ Enhance seed germination
 ∞ Stimulate plant growth
 ∞ Prevent pests

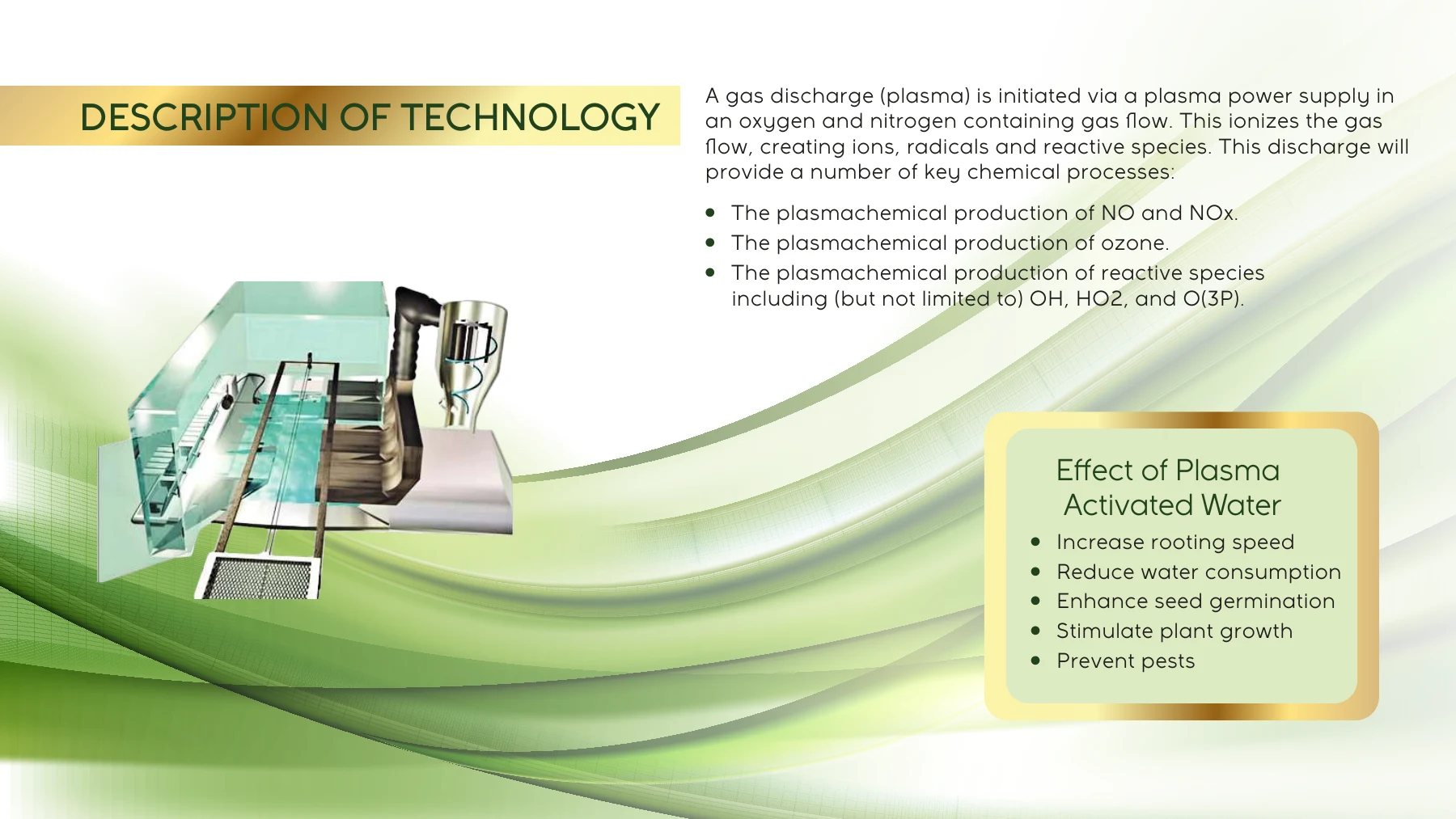

DESCRIPTION OF TECHNOLOGY
A gas discharge (plasma) is initiated via a plasma power supply in
an oxygen and nitrogen containing gas flow. This ionizes the gas
flow, creating ions, radicals and reactive species. This discharge will
provide a number of key chemical processes:
Effect of Plasma
 Activated Water

∞ shortens the extraction time
 ∞ increases the yield of the extracted components
 ∞ improves the quality of the extracted components
 ∞ improves the production speed
 ∞ reduce the production cost
 ∞ improve the economic benefit of the enterprise
Advantages of Ultrasonic extraction technology
-

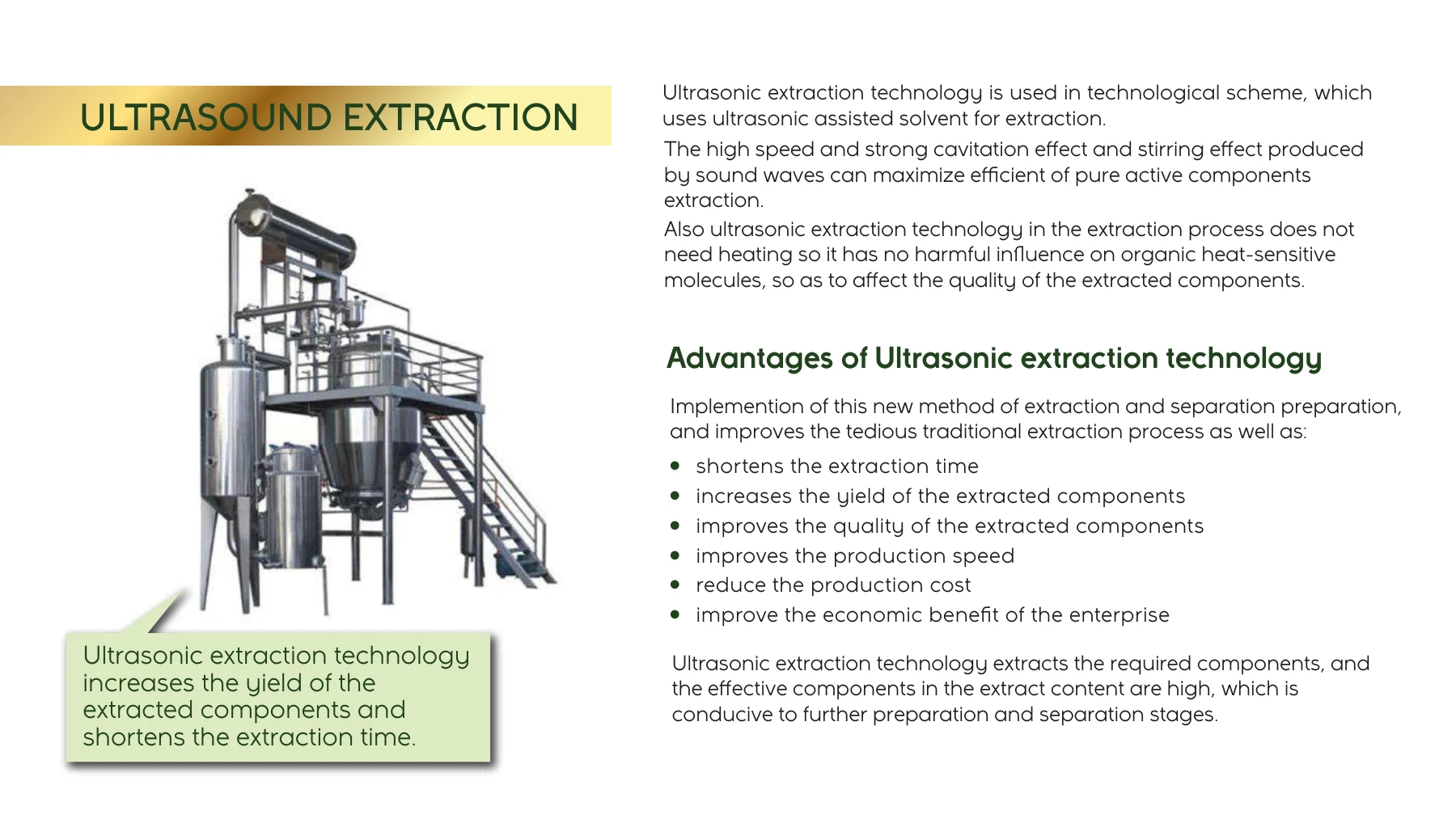

ULTRASOUND EXTRACTION
Ultrasonic extraction technology is used in technological scheme, which
uses ultrasonic assisted solvent for extraction.
Implemention of this new method of extraction and separation preparation,
and improves the tedious traditional extraction process as well as:
The high speed and strong cavitation effect and stirring effect produced
by sound waves can maximize efficient of pure active components
extraction.
Also ultrasonic extraction technology in the extraction process does not
need heating so it has no harmful influence on organic heat-sensitive
molecules, so as to affect the quality of the extracted components.
Ultrasonic extraction technology extracts the required components, and
the effective components in the extract content are high, which is
conducive to further preparation and separation stages.
Ultrasonic extraction technology
increases the yield of the
extracted components and
shortens the extraction time.

solids
discharge
feed inlet
liquid
discharge
under
pressure

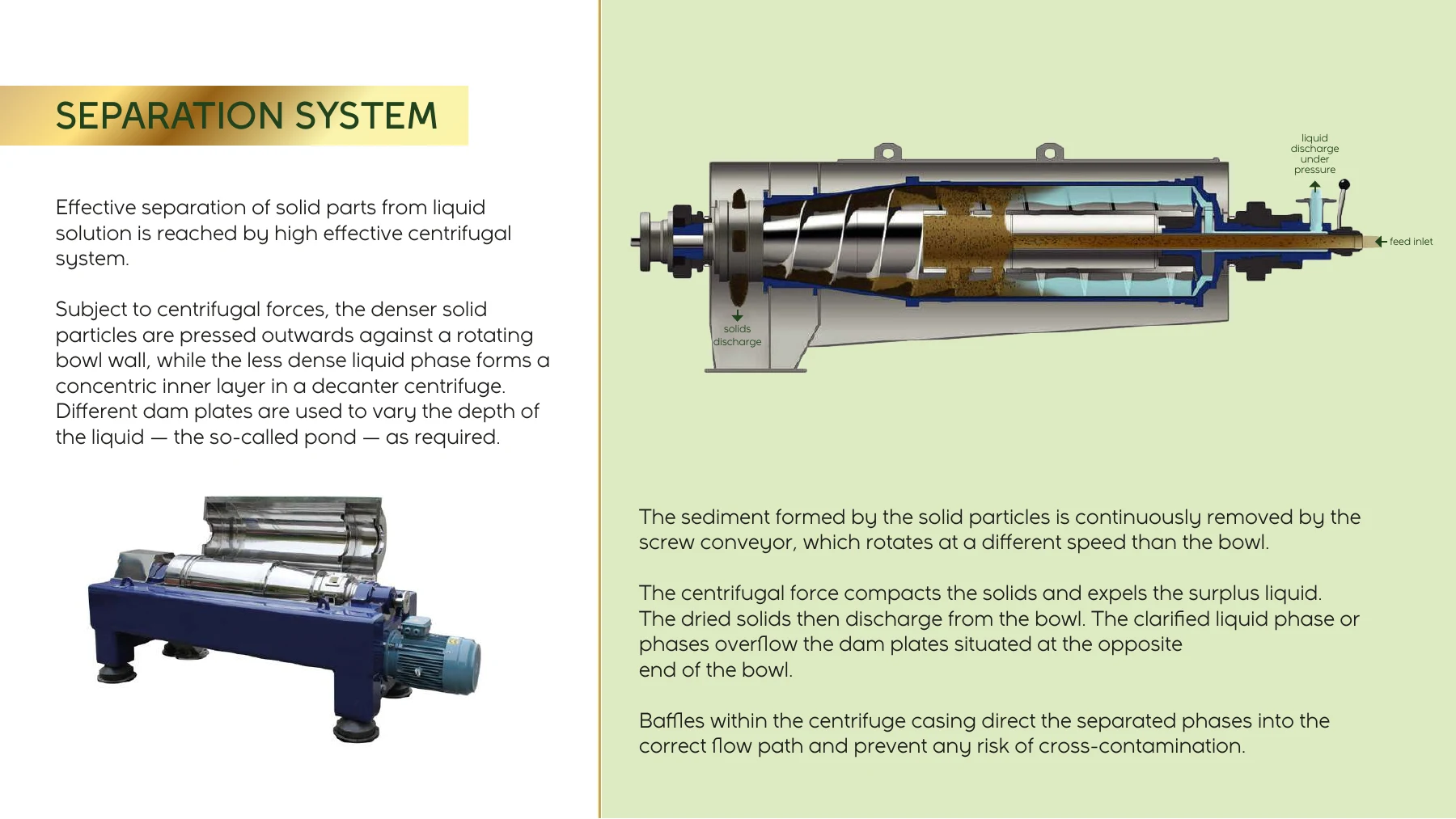

SEPARATION SYSTEM
The sediment formed by the solid particles is continuously removed by the
screw conveyor, which rotates at a different speed than the bowl.
The centrifugal force compacts the solids and expels the surplus liquid.
The dried solids then discharge from the bowl. The clarified liquid phase or
phases overflow the dam plates situated at the opposite
end of the bowl.
Baffles within the centrifuge casing direct the separated phases into the
correct flow path and prevent any risk of cross-contamination.
Effective separation of solid parts from liquid
solution is reached by high effective centrifugal
system.
Subject to centrifugal forces, the denser solid
particles are pressed outwards against a rotating
bowl wall, while the less dense liquid phase forms a
concentric inner layer in a decanter centrifuge.
Different dam plates are used to vary the depth of
the liquid — the so-called pond — as required.

Corrosion resistance
High and low temperature resistance
Strength
Aesthetic appeal
.
Hygienic properties
Stainless steel units has high cleanabilty characteristics

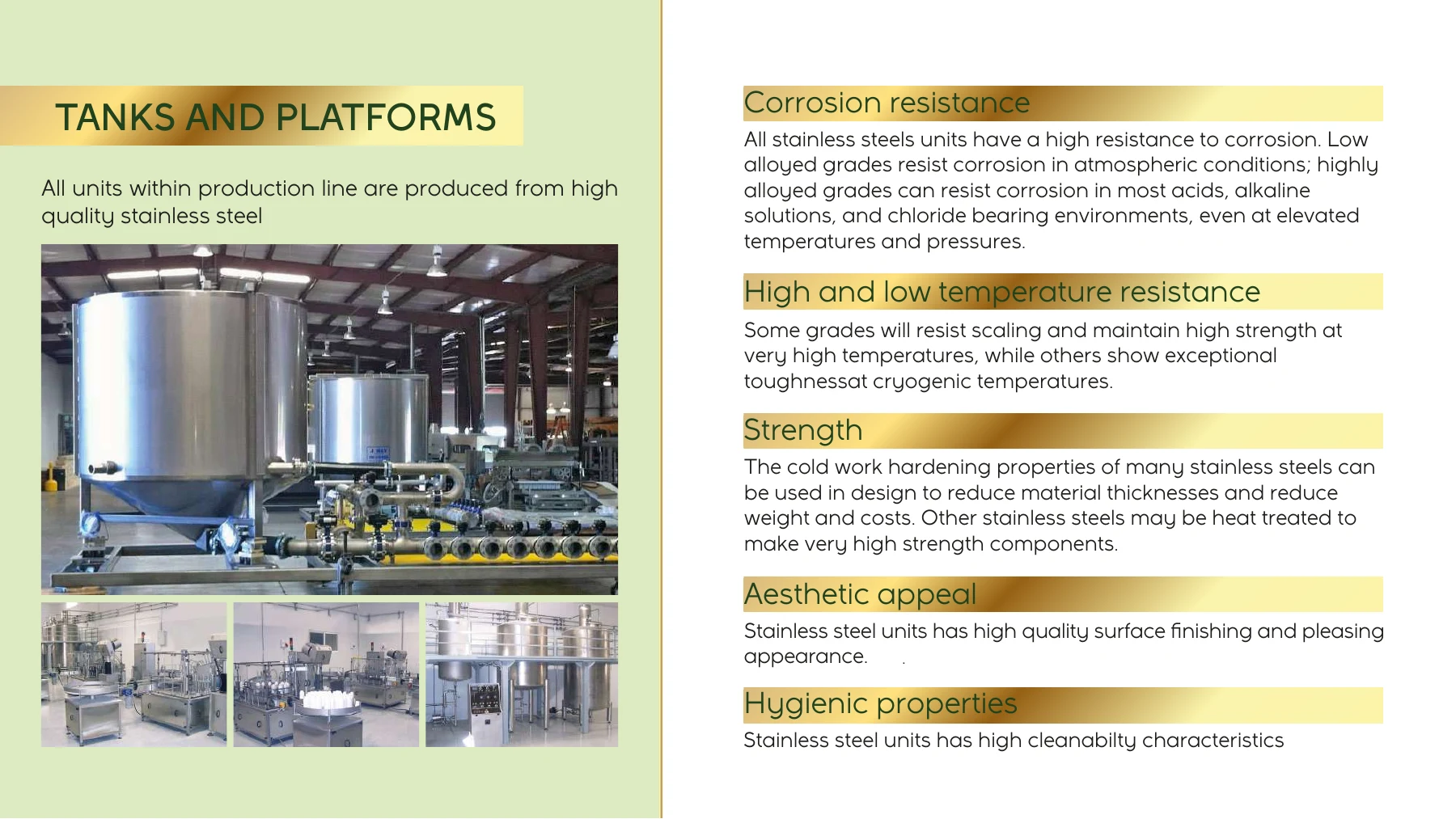

TANKS AND PLATFORMS
All units within production line are produced from high
quality stainless steel
All stainless steels units have a high resistance to corrosion. Low
alloyed grades resist corrosion in atmospheric conditions; highly
alloyed grades can resist corrosion in most acids, alkaline
solutions, and chloride bearing environments, even at elevated
temperatures and pressures.
Some grades will resist scaling and maintain high strength at
very high temperatures, while others show exceptional
toughnessat cryogenic temperatures.
The cold work hardening properties of many stainless steels can
be used in design to reduce material thicknesses and reduce
weight and costs. Other stainless steels may be heat treated to
make very high strength components.
Stainless steel units has high quality surface finishing and pleasing
appearance.

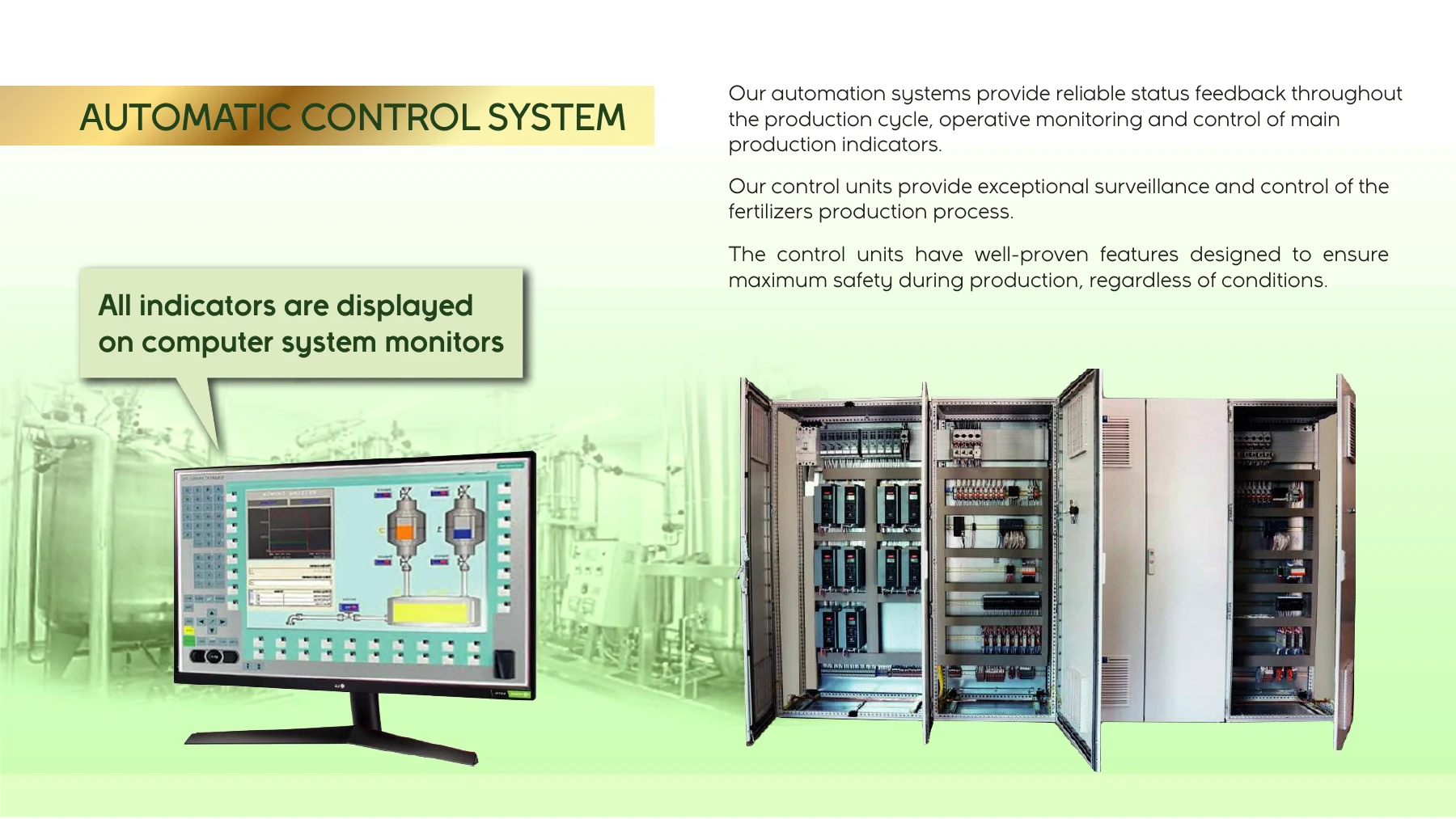

All indicators are displayed
on computer system monitors

AUTOMATIC CONTROL SYSTEM
Our automation systems provide reliable status feedback throughout
the production cycle, operative monitoring and control of main
production indicators.
Our control units provide exceptional surveillance and control of the
fertilizers production process.
The control units have well-proven features designed to ensure
maximum safety during production, regardless of conditions.

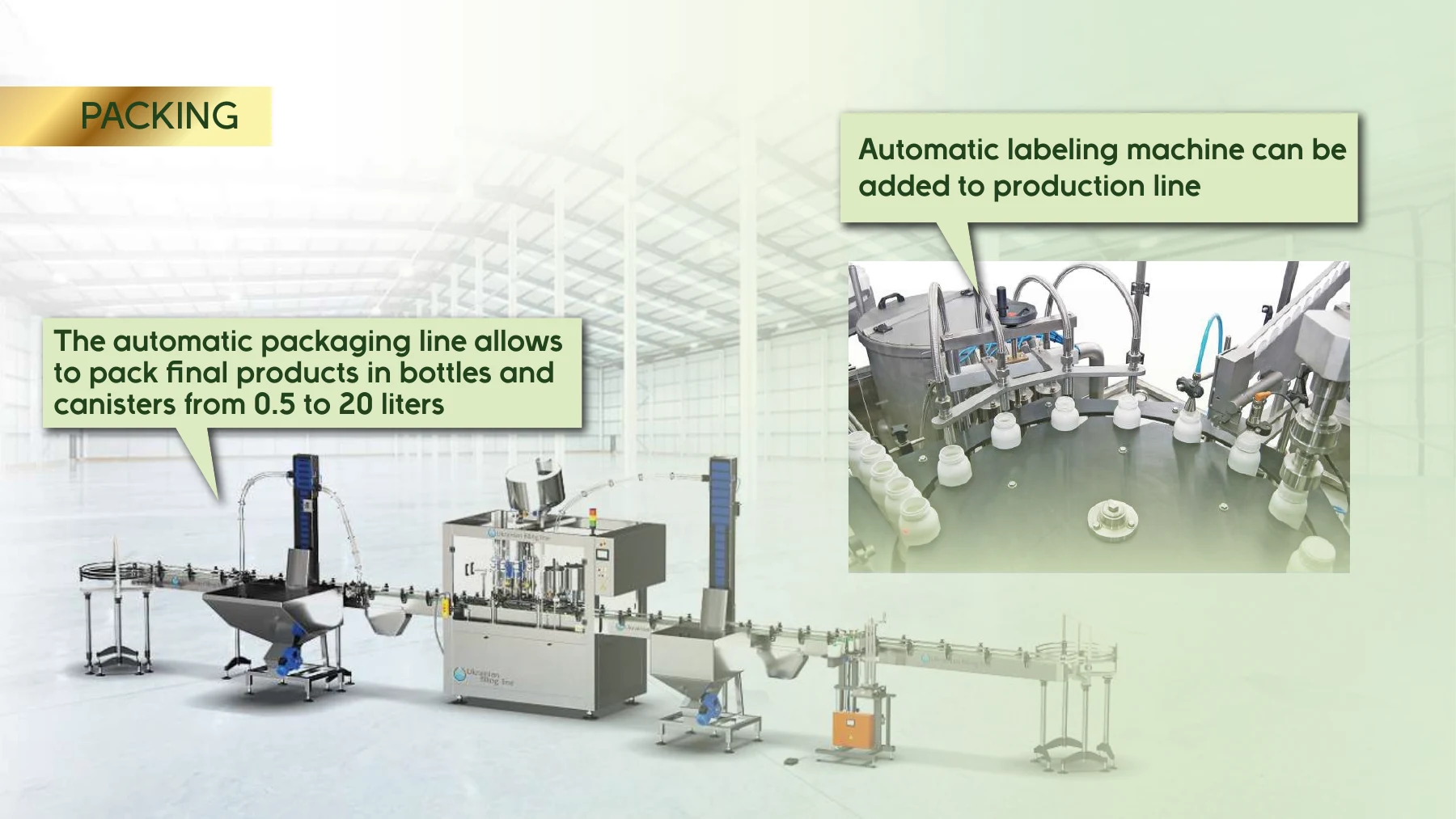

Automatic labeling machine can be
added to production line
The automatic packaging line allows
to pack final products in bottles and
canisters from 0.5 to 20 liters
PACKING

Humic and fulvic
acids in agriculture
AGRONAMA.COM

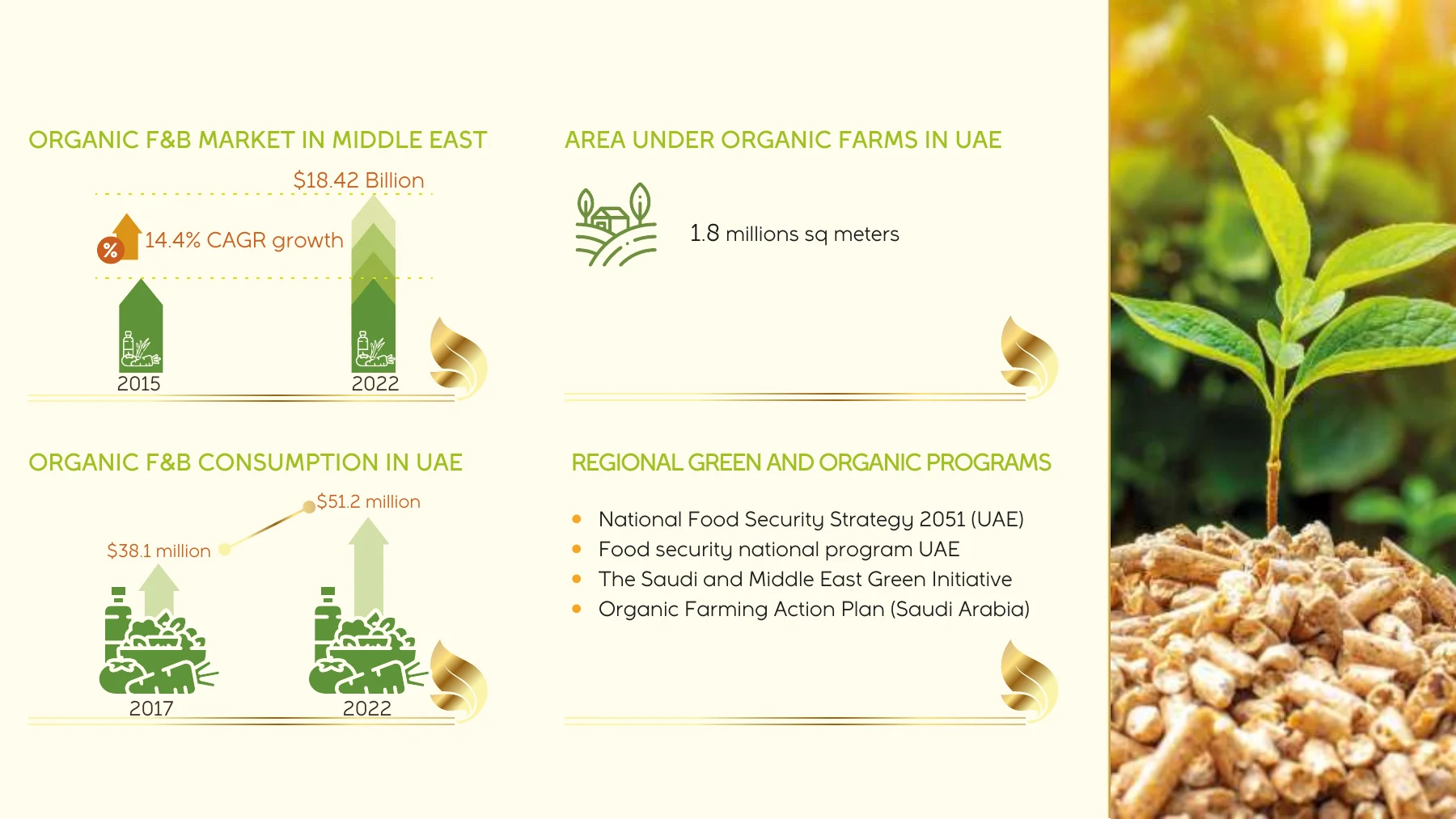

ORGANIC F&B MARKET IN MIDDLE EAST
ORGANIC F&B CONSUMPTION IN UAE REGIONAL GREEN AND ORGANIC PROGRAMS
 ∞ National Food Security Strategy 2051 (UAE)
 ∞ Food security national program UAE
 ∞ The Saudi and Middle East Green Initiative
 ∞ Organic Farming Action Plan (Saudi Arabia)
2015
$18.42 Billion
14.4% CAGR growth
2022
2017
$38.1 million
$51.2 million
2022
AREA UNDER ORGANIC FARMS IN UAE
1.8 millions sq meters

∞ shortens the extraction time
 ∞ increases the yield of the extracted
components
 ∞ improves the quality of the extracted
components
 ∞ improves the production speed
 ∞ reduce the production cost
 ∞ improve the economic benefit of the
enterprise

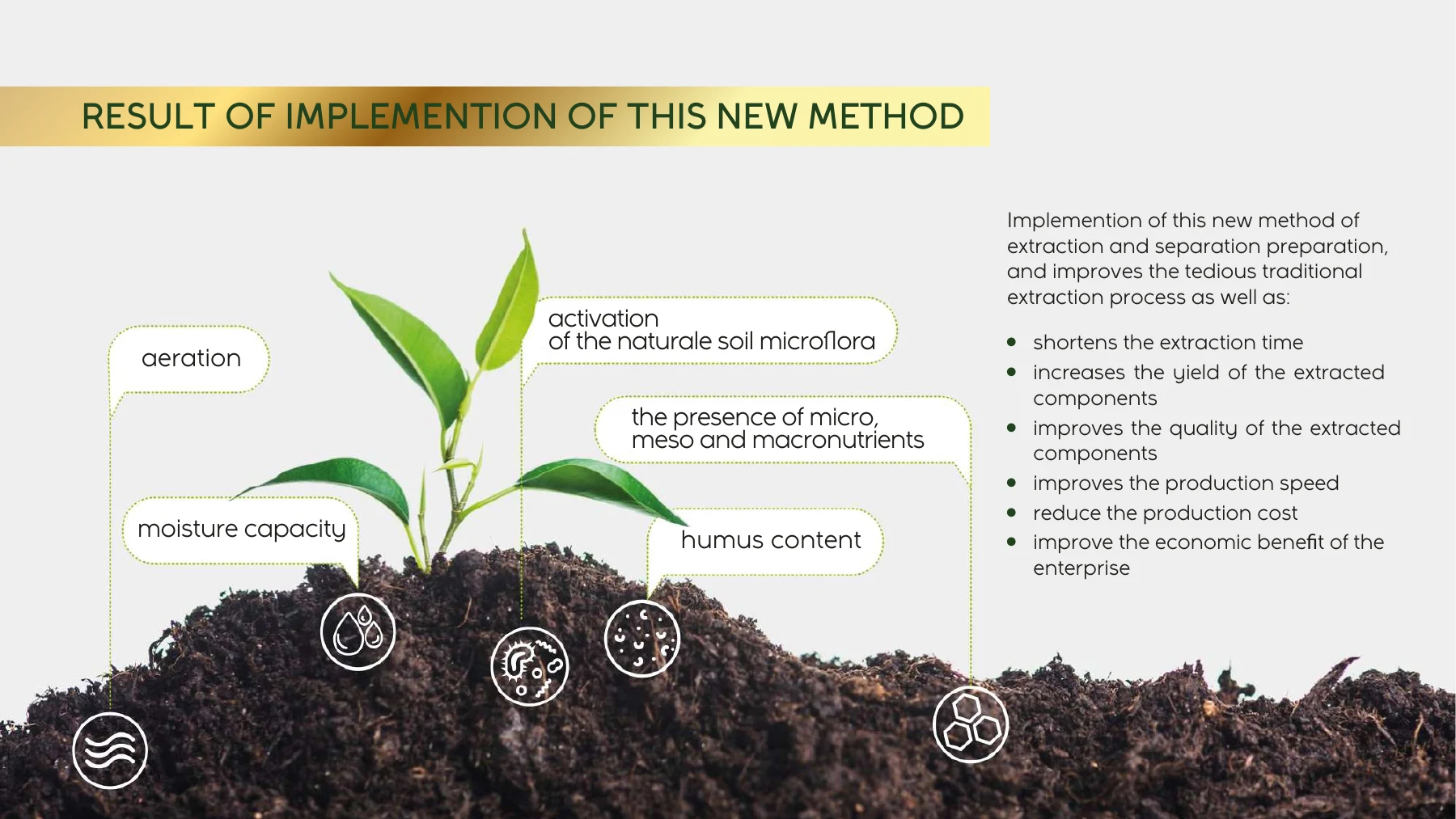

RESULT OF IMPLEMENTION OF THIS NEW METHOD
Implemention of this new method of
extraction and separation preparation,
and improves the tedious traditional
extraction process as well as:
aeration
humus content
activation
of the naturale soil microflora
the presence of micro,
meso and macronutrients
moisture capacity

∞
 ∞
 ∞
 ∞ helps loosen and crumble the soil
 ∞ increases the aeration and workability of the soil
 ∞
THE PHYSICAL BENEFITS
enhancing the soil structure and preventing the
high water and nutrient loss in sunlight and sand soils
resist drought and darken the color of the soil which
help in the absorption of solar energy
helps in converting the sand soils into fertile soils by
decomposition
prevents soil cracking, surface water runoff, and soil
erosion

∞
 ∞
 ∞ retains water-soluble inorganic fertilizers
 ∞ increase the uptake of nitrogen and nutrients
 ∞
 ∞
 ∞
 ∞

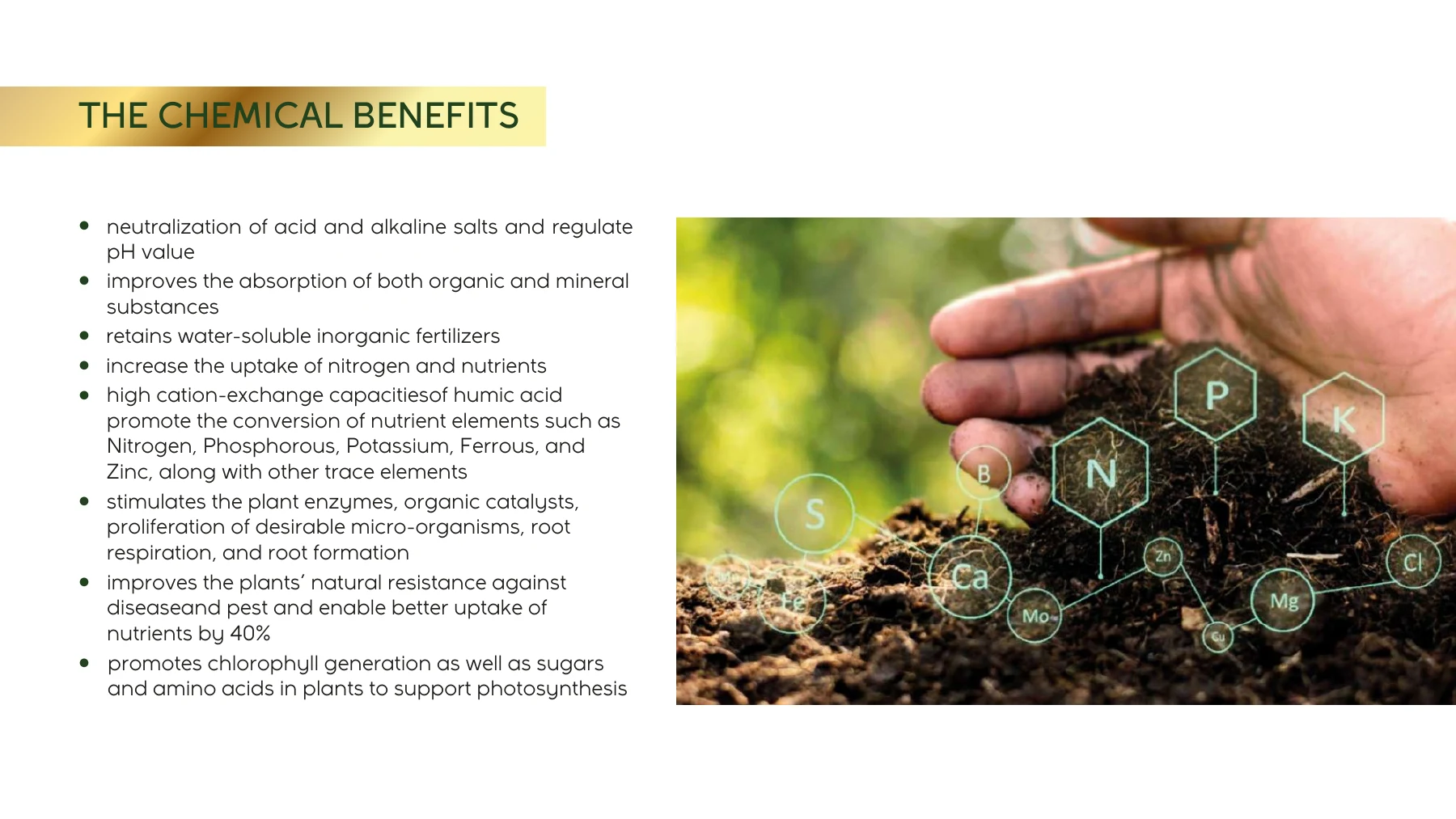

THE CHEMICAL BENEFITS
neutralization of acid and alkaline salts and regulate
pH value
improves the absorption of both organic and mineral
substances
high cation-exchange capacitiesof humic acid
promote the conversion of nutrient elements such as
Nitrogen, Phosphorous, Potassium, Ferrous, and
Zinc, along with other trace elements
stimulates the plant enzymes, organic catalysts,
proliferation of desirable micro-organisms, root
respiration, and root formation
improves the plants’ natural resistance against
diseaseand pest and enable better uptake of
nutrients by 40%
promotes chlorophyll generation as well as sugars
and amino acids in plants to support photosynthesis

NUTRITION COMPLEX
Technological line for producing of liquid organic fertilizers and plant growth
stimulators based on humic and fulvic acids allows to produce full complex of
nutrients essential for plants growing
AGRONAMA.COM AGRONAMA.COM AGRONAMA.COM AGRONAMA.COM AGRONAMA.COM

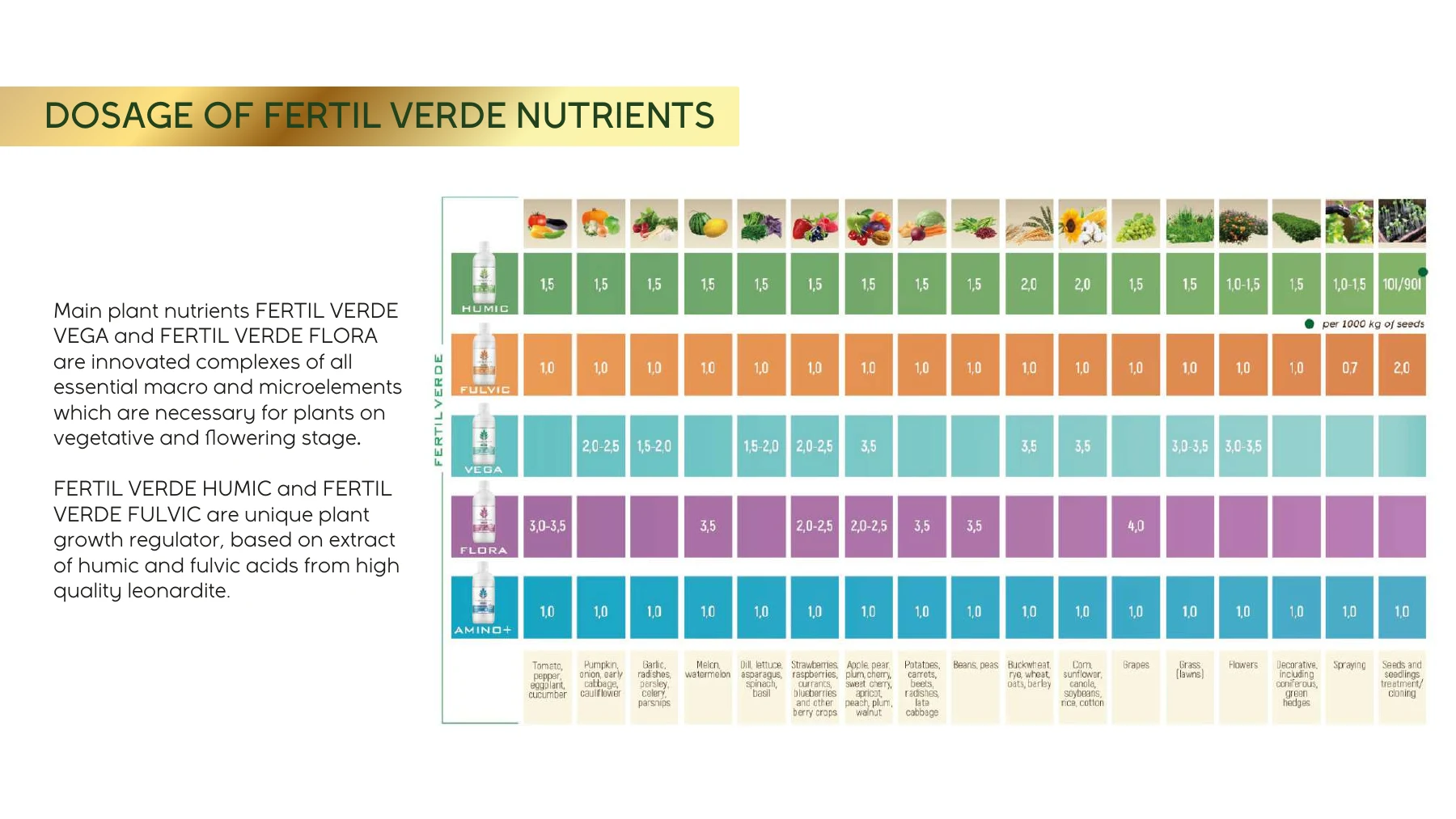

DOSAGE OF FERTIL VERDE NUTRIENTS
Main plant nutrients FERTIL VERDE
VEGA and FERTIL VERDE FLORA
are innovated complexes of all
essential macro and microelements
which are necessary for plants on
vegetative and flowering stage.
FERTIL VERDE HUMIC and FERTIL
VERDE FULVIC are unique plant
growth regulator, based on extract
of humic and fulvic acids from high
quality leonardite.
